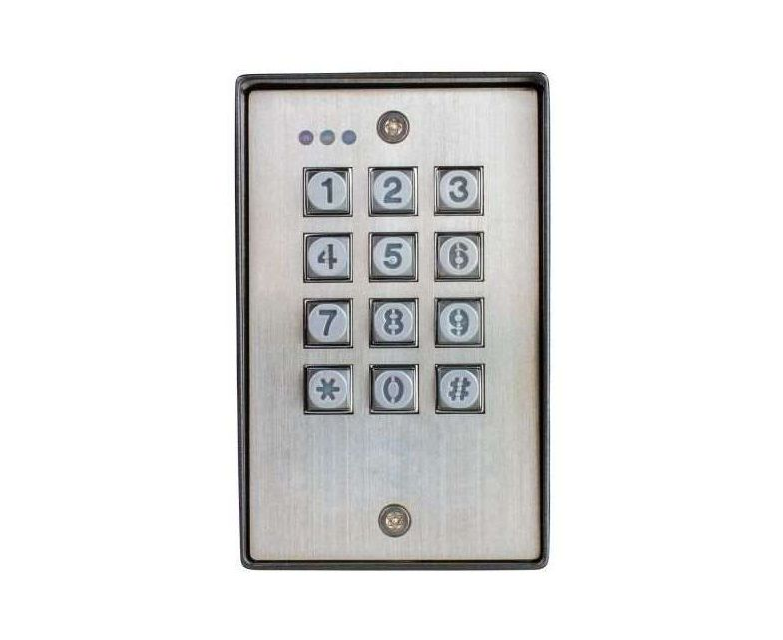

Enforcer SK-1123-SDQ Outdoor Keypad Backlit Waetherproof Heavy-Duty

The SK-1123-SDQ keypad from Seco-Larm is weather resistant and vandal resistant. It features two outputs (Output #1: 100 users, Output #2: 10 users) and 12~24 VDC/VAC operation. It also Includes duress, quick code, wrong-code lockout, egress input, three LEDs, a built-in buzzer, and back box.

Technical Specifications:

• Operating Voltage: 12~24 VDC/VAC
• Current Draw- Standby: 66mA@12VDC
• Current Draw- Keypress: 93mA@12VDC
• Current Draw- 1 Relay Active: 99mA@12VDC
• Current Draw- 1 & 2 Relays Active: 126mA@12VDC
• Current Draw- Total Max: 160mA@12VDC
• Relay Output- #1: 1A@30VDC, Form C
• Relay Output- #2: 1A@30VDC, Form C
• Relay Output- Key Active: 100mA@24VDC
• Relay Output- Duress: 100mA@24VDC
• Relay Output- Interlock: 100mA@24VDC
• Relay Output- Tamper: 50mA@24VDC
• Egress Inputs: N.O. Ground
• Door Inhibit Input: N.O. Ground
• Door Sensor Input: N.C. Ground
• Operating Temperature: -4~158 F (-20~70 C)
• Operating Humidity: 5~95% Non-condensing
• Weight: 1-lb, 2-oz (520g)
• Dimensions: 4-15/16x3-1/8x2-1/16 (125x79x52 mm)
