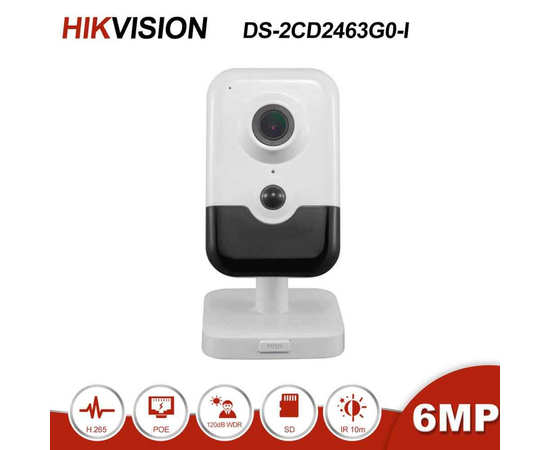

6 MP INDOOR WDR FIXED CUBE NETWORK CAMERA

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Provides real-time security via built-in two-way audio
• Detects human body through passive infrared is sensitive to body temperature (PIR)
• -W: Wi-Fi connection

• Camera
• Image Sensor1/2.9" Progressive Scan CMOS
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Day &NightIR Cut Filter
• Wide Dynamic Range120dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR3D DNR

• Lens
• Lens2.8/4 mm
• ApertureF2.0
• FOV2.8 mm, horizontal FOV: 97°, vertical FOV: 67°, diagonal FOV: 121°,4 mm, horizontal FOV: 78°, vertical FOV: 53°, diagonal FOV: 98°
• Lens MountM12

• Illuminator
• IR Range10 m
• Wavelength850nm

• PIR
• PIR AngleHorizontal: 90°, Vertical: 80°
• PIR Range10 m

• Video
• Max. Resolution3072 × 2048
• Main Stream50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 16 Mbps
• SVCSupport H.264 and H.265 encoding

• Audio
• Audio CompressionG722.1/G.711/G726/MP2L2/PCM/MP3
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
• Environment Noise FilteringYes
• Audio Sampling Rate16 kHz

• Smart Feature-Set
• Smart EventLine crossing detection, intrusion detection, face detectio
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email

• Image
• Image EnhancementBLC/3D DNR/HLC
• Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule

• Wi-Fi
• Frequency2.412 GHz to 2.4835 GHz
• Channel Bandwidth20M/40M
• SecurityWPA, WPA2
• Transfer Rate11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
• Wireless Range50 m
• Wireless StandardsIEEE 802.11b/g/n

• Network
• Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

• Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Audio1 built-in mic, 1 built-in speaker, mono sound
• On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128G

• Compression Standard
• H.264+Main stream supports
• H.265+Main stream supports

• Smart Feature-Set
• Face DetectionYes

• General
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• ResetYes
• Startup And Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption And Current12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
• MaterialPlastic
• Dimensions102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
• WeightCamera: Approx. 128 g (0.3 lb.)
