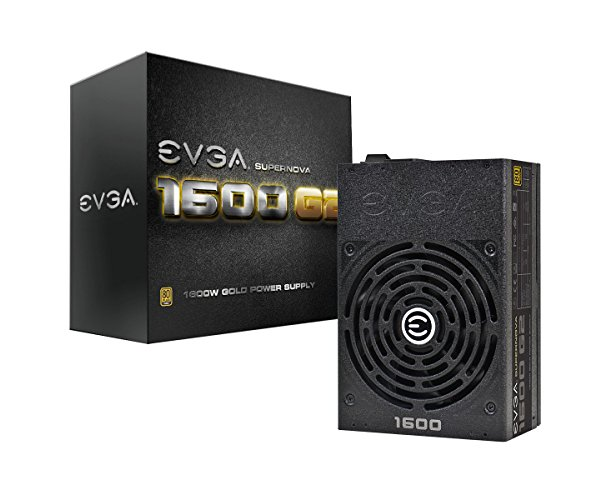

EVGA 1600Watt PSU Gold Series

Product Features: Mfr Part Number: 120-G2-1600-X1 EVGA 1600 G2 - "Unrivaled Performance" 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads Fan Size / Bearing: 140mm Double Ball Bearing Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection) Highest quality Japanese brand capacitors ensure long-term reliability Fully Modular to reduce clutter and improve airflow NVIDIA SLI & AMD Crossfire Ready Double Ball Bearing fan for exceptional reliability and quiet operation Maximum Power: 1600 W Input: Voltage: 115 ~ 240 VAC Current: 17 ~ 10 A Frequency Range: 50 ~ 60 Hz Type: ATX12V / EPS12V Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical MTBF: 100,000 hours Fan: 1x 140mm Double Ball Bearing Fan Output: +3.3V @ 24A, +5V @ 24A, +12V@ 113.3A, +5VSB @ 3A, -12V @ 0.5A Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connectors, 9x 8(6+2)pin PCI-Express Connectors, 5x 6pin PCI-Express Connectors, 16x SATA Connectors, 6x Molex Connectors, 2x Floppy Connectors Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS Dimensions (WxLxH): 150.0 x 220.0 x 85.0 mm Weight: 8.0 lbs Product Description: Introducing the EVGA SuperNOVA 1600 G2 power supply. This power supply raises the bar with 1600W of continuous power delivery and 90% (115VAC) / 92% (220VAC~240VAC) efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclock ability and unparalleled control. The EVGA SuperNOVA 1600 G2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance. EVGA SuperNOVA 1600 G2 80+ GOLD, 1600W Fully Modular NVIDIA SLI and Crossfire Ready 10 Year Warranty Power Supply 120-G2-1600-X1
