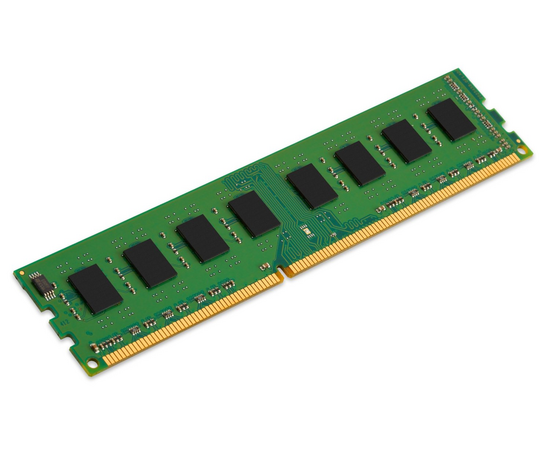

Kingston KVR 4GB DDR3 1600MHZ DIMM
ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
DESCRIPTION
This document describes ValueRAM's 512M x 64-bit (4GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold
contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
•JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
•VDDQ = 1.5V (1.425V ~ 1.575V)
•800MHz fCK for 1600Mb/sec/pin
•8 independent internal bank
•Programmable CAS Latency: 11, 10, 9, 8, 7, 6
•Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
•8-bit pre-fetch
•Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
•Bi-directional Differential Data Strobe
•Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
•On Die Termination using ODT pin
•Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
•Asynchronous Reset
•PCB : Height 0.740” (18.75mm), single sided component
SPECIFICATIONS
CL(IDD) 11 cycles
Row Cycle Time (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 35ns (min.)
Maximum Operating Power 2.160 W*
UL Rating 94 V - 0
Operating Temperature 0C to 85C
Storage Temperature -55C to +100C
*Power will vary depending on the SDRAM used
