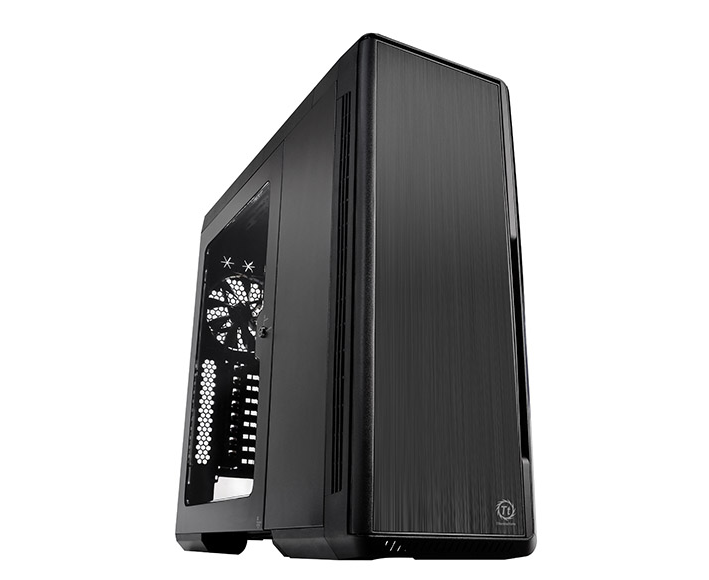

Thermaltake Urban T81 ATC Case
Features
Thermaltake presents an update of its Urban line with the new Urban T81 – an elegant, high-impact design. Beautifully architectured, the T81 is engineered for one solid purpose: To provide enthusiasts with the ability to build the highest performing systems while retaining a simple, elegant, and commanding appearance. It is not merely a PC chassis; it is an exemplar of modernist design.
Inspired by automotive “suicide doors” , the T81's novel door panels are an innovative and inspired design that sets it apart from any other chassis . Likewise, the front door panel's brushed aluminum finish masks extrusive drives and devices, producing a unified aesthetic of modern sophistication.
A highly customizable 5.25” & 3.5” drive bay enables users to freely interchange the 3.5” hard-drive cages to suit one’s need, or remove 5.25” & 3.5” drive bays to gain maximum interior space for maximum airflow or the addition of liquid cooling systems..

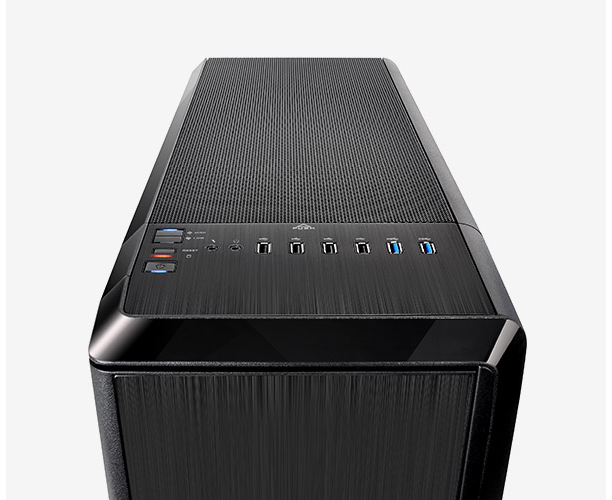

The sleek, brushed aluminum I/O port section provides two of the latest SuperSpeed USB 3.0 ports, along with four USB 2.0 ports. The integrated fan hub and controller can easily manage the airflow of up to 10 fans at once. In addition, HD microphone and headset jacks are positioned for easy, direct access when needed.

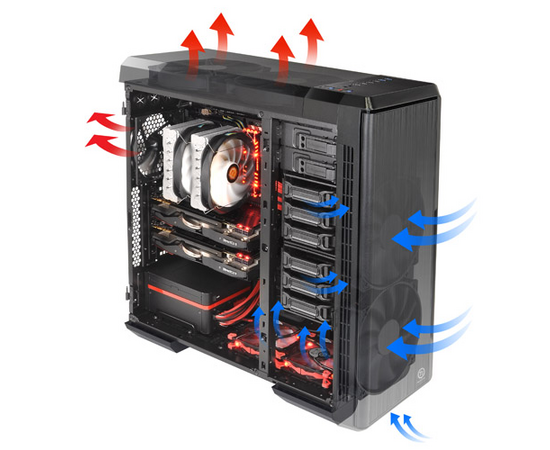

Urban T81 is built to optimize airflow as part of its fundamental design. Triple 200mm fans and a 140mm fan come equipped. It is the first chassis in the market that has the ability to house 4x 200mm fans, along with three more 120mm fans - allowing unrivaled airflow to protect your valuable components.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Specifications
| Model | Urban T81 |
| P/N | CA-1B7-00F1WN-00 |
| Case Type | Full Tower |
| Dimension (H x W x D) | 585 x 235 x 602 mm (23 x 9.3 x 23.7 inch) |
| Net Weight | 13.8 Kg / 30.4 lb |
| Side Panel | Transparent Window |
| Color | Exterior & Interior : Black |
| Material | SECC |
| Cooling System | Front (intake) : 200 x 200 x 30 mm fan (600~800rpm, 13~15dBA) x 2 Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) Top (exhaust) : 200 x 200 x 30 mm fan (600~800rpm, 13~15dBA) |
| Drive Bays | -Accessible : 2 x 5.25’’,1 x 3.5’’ (Converted from one 5.25” drive bay) -Hidden : 8 x 3.5’’ or 8 x 2.5’’ |
| Expansion Slots | 8 |
| Motherboards | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
| I/O Port | USB 3.0 x 2,USB 2.0 x 4, HD Audio x 1, Fan Speed Control |
| PSU | Standard PS2 PSU (optional) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| Fan Support | Front: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm 1 x 200mm or 2 x 200mm Top: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm 1 x 200mm or 2 x 200mm Rear: 1 x 120mm or 1 x 140mm Bottom: 1 x 120mm or 2 x 120mm 1 x 140mm or 2 x 140mm |
| Radiator Support | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm or 1 x 420mm Top: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm or 1 x 420mm Rear: 1 x 120mm or 1 x 140mm Bottom: 1 x 120mm or 1 x 240mm 1 x 140mm or 1 x 280mm |
| Other | CPU cooler height limitation: 180mm VGA length limitation: 360mm(with HDD rack) 400mm(without HDD rack) |
