Startech VGA to Cat5 Monitor Extender Kit

ST121UTPEP
TT$1,056.00
(TT$1,188.00 inc tax)
Currently Unavailable. Call (868) 638-4336 for updates.
30 days
Delivery Options
  • Deliver to your Door! or
    Collect In-Store

Payment options
Our advantages
  • — Warranty Available
  • — Return and exchange
  • — Different payment methods
  • — Best price in T&T

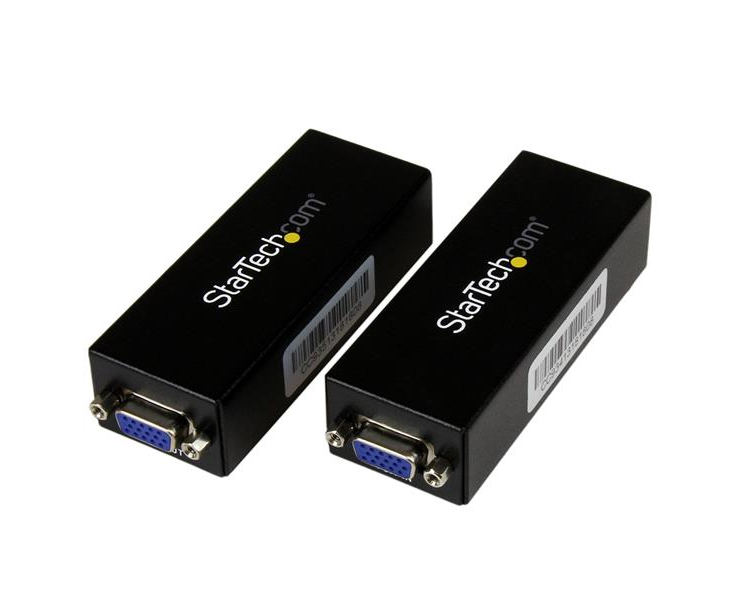

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5e or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.
  • Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment
  • Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation

Features

  • Extends video signal by up to 250 ft. (80m)
  • Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
  • Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
  • Mounting bracket included
  • Single power adapter can be connected at local or remote end of the extension
  • Uses standard Cat 5 or better cabling
  • Kit consists of 1 Base unit and 1 Remote unit
  • Pure hardware design - no software or drivers required

Specifications

Warranty Information
Warranty 2 Years
Hardware
Ports 1
Cabling Cat 5 UTP
Audio No
Daisy-Chain No
Connector(s)

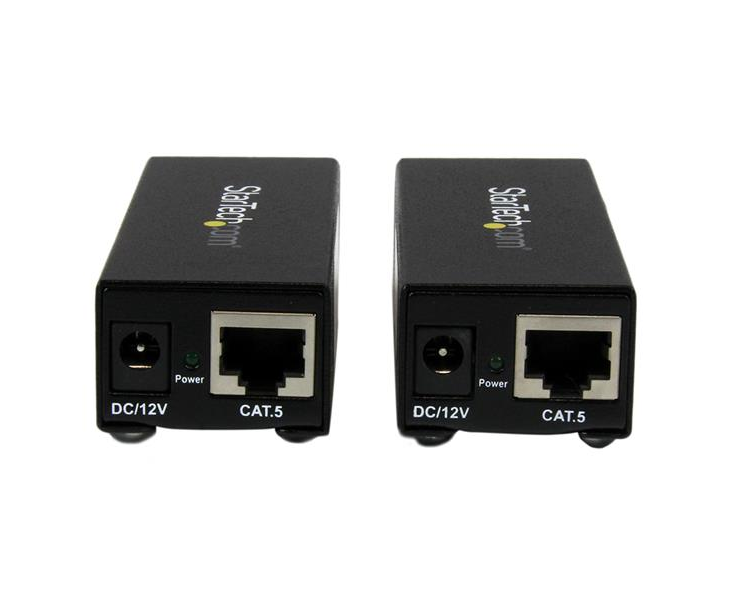

Local Unit Connectors 1 - RJ-45 Female
1 - VGA (15 pin; High Density D-Sub) Female
Remote Unit Connectors 1 - RJ-45 Female
1 - VGA (15 pin; High Density D-Sub) Female
Performance
Max Distance 80 m / 260 ft
Supported Resolutions 1920x1200 @ 50m(164ft)
1280x1024 @ 80m(260ft)
Special Notes / Requirements
Note Resolution may vary at distances depending on cable quality. Cat 5e UTP cables are recommended.
Physical Characteristics
Color Black
Enclosure Type Aluminum
Product Length 3.9 in [100 mm]
Product Width 5.4 in [138 mm]
Product Height 1 in [25 mm]
Product Weight 1.3 oz [36 g]
Power
Power Source AC Adapter Included
Output Voltage 12 DC
Output Current 0.6A
Center Tip Polarity Positive
Packaging Information
Shipping (Package) Weight 2.7 lb [1.2 kg]

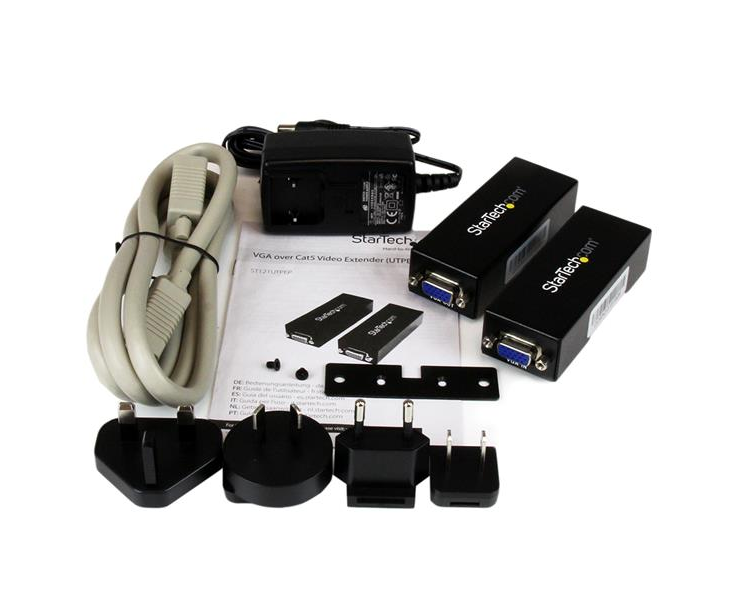

What's in the Box
Included in Package 1 - VGA over Cat5 Transmitter
1 - VGA over Cat5 Receiver
1 - Installation Bracket (w/ screws)
1 - VGA Cable
1 - Universal Power Adapter (NA/UK/EU/AUS)
1 - Instruction Manual
Brand
Startech
UPC Code
0065030835398
