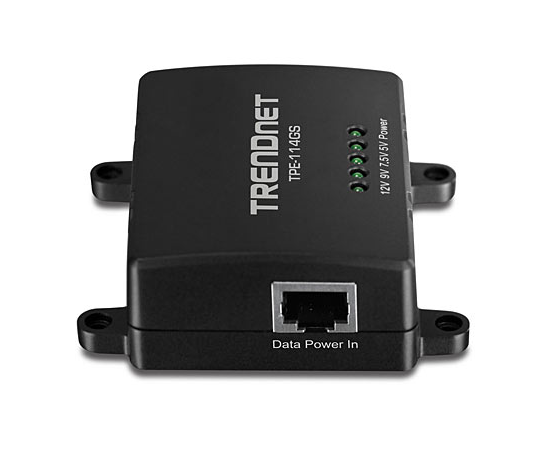

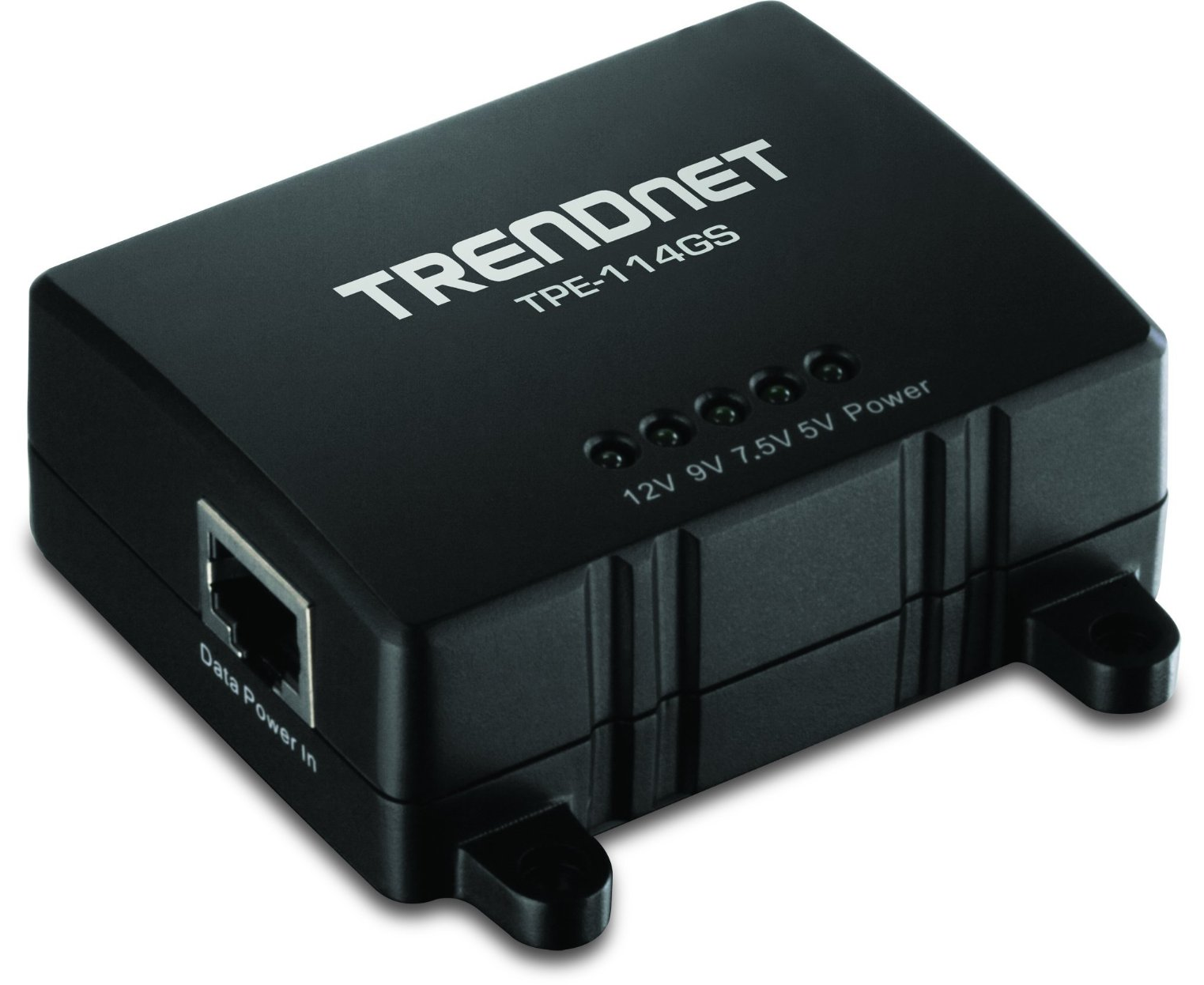

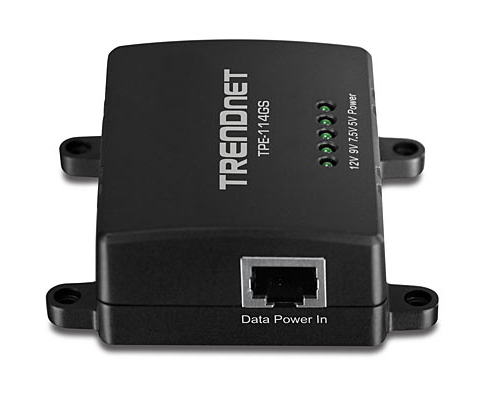

Trendnet TPE114-GS POE Splitter

The Gigabit Power over Ethernet Splitter, model TPE-114GS, is used to install non-PoE devices in remote locations. It splits a networked PoE signal into separate power and Gigabit data sources. Run an Ethernet cable from a Gigabit PoE switch (or injector) for distances up to 100 meters and then split the PoE signal into separate Gigabit data and power sources in order to network a non-PoE device. No need to install non-PoE devices near a power outlet. Save installation and equipment cost when installing access points, IP cameras, and more in a remote location. A handy toggle switch adjusts output power to 5V, 7.5V, 9V, or 12V in order to match non-PoE device power requirements. This compact splitter safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network at Gigabit speeds. Converts non-PoE devices with Power over Ethernet support 1 x 10/100/1000Mbps PoE Auto-MDIX Data In port 1 x 10/100/1000Mbps Auto-MDIX Data Out port Power out port 1 x 33cm (13”) jumper cable with a 2.0mm connection to the splitter and 2.0mm pin connection to powered device 1 x 33cm (13”) jumper cable with a 2.0mm connection to the splitter and 2.5mm pin connection to powered device For a product with a 1mm pin power connection, use this product with TRENDnet’s TV-JC35 (3.5mm to 1mm Jumper Cable) Power LED indicator Install non-PoE devices where a power outlet is not available Reduce installation and network equipment costs Safeguards network device with short circuit protection Adjustable output DIP switch 5V, 7.5V, 9V, and 12V adjustable output Auto-sensing power drawn from 802.3af power source equipment(PSE) devices Light weight and compact size Wall mounting points 3-year limited warranty
